BARONSA-WIFI* CONTROLLER

All disciplines
15 launchers
Cable and Radio

Caractéristics

• the box resist very well on rain.
• Very simple to use and configure.
• Automatic No-bird with limit.
• Work with 5 micros for all except for skeet 8 micros used.
• Working mode for count up or count down with cards.
• Option: A long range radio sender module AM and FM include on the DATEC box.
  32 * 8 launchers or 16 * 15 launchers.
• Electric power supply 12 volts DC ou AC (maximum 18 volts DC)
• A relay of machine accept 1 Ampére maximum.
• FITASC Agrément 2020 For International championnachip of Compak and trap.

Programs

• Up to 55 programs on internal memory.
• 40 programs officiels for FITASC (version 2020 on demand.)
• Others programs include: OT, UT, ABT, DTL, skeet, compack, Sporting. Double Trap.
• With software BBE232.exe, you have a possibility to make your own programs.

Score management

• Composite output for télévision.

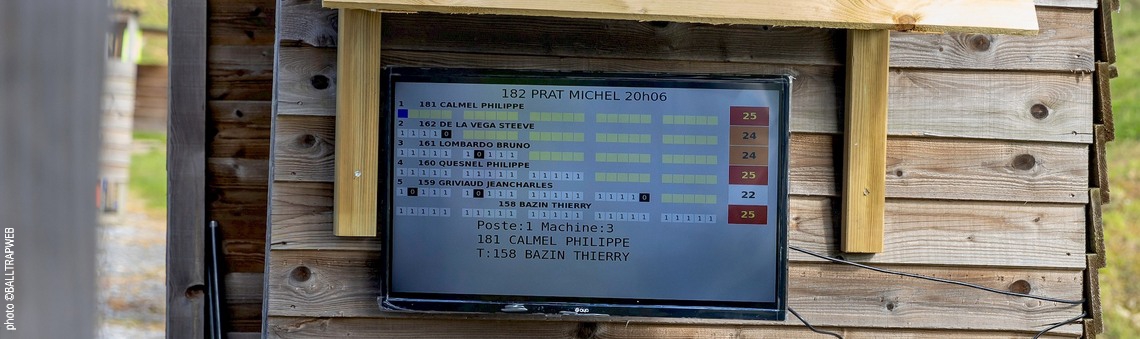

• Referee Box to manage zeros, break and no-bird.
• Light Ouput for lamp of microphones.

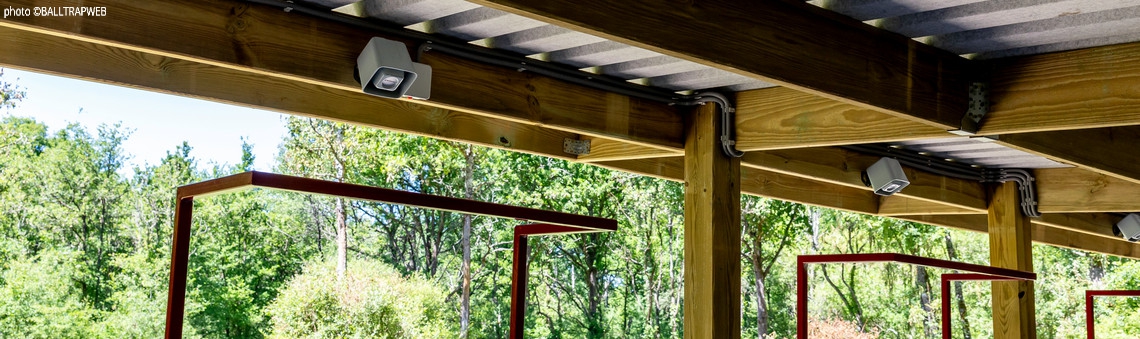

CONTROLLER WITH ALL MIKE OPEN

Caractéristics

• Very good immunity to noise from other installations.
• All micros open with a minimum 2 up to 5 micros.
• Launch Immediate or up to 1.5 second randomly.
• The relay accept up to 2 Amperes.
• Compatible with all launchers and works on the launcher's 12v.

Female connectors connections:

• Each microphone connects to pin 2 and 3 of the connector.
• A minimum of two microphones is required.
• For optimum operation, use five microphones.

Male connector connection:

• Positive = Pin 1 Brown.
• Négative = Pin 2.
• Machine = Pin 3 Output.
• Machine = Pin 4 Input.

Version with launcher selection for Universal Trench

Version for your BARONSA-WIFI* installation:

You connect this box on place of your BARONSA-WIFI*.
You have a possibility to select the launcher need, 1 up to 5 with a soft rotative selector.
Ideal for training or new shooters, on UT or DTL.

To use, unplug your BARONSA-WIFI* and plug this box to have all free possibilities of post and launching. All Micros are open.

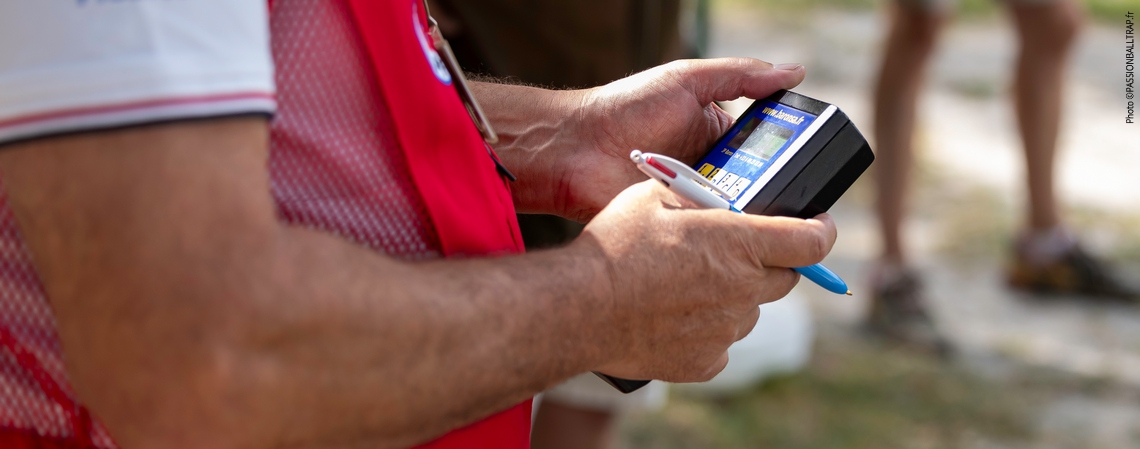

LONG RANGE RADIO SENDER

Up to 64 channels of 8 machines

Caractéristics

• New software include FLUSH program to launch random or sequential.
• Internal microphone for voice detection to use alone.
• the box resist very well on rain.
• Possibility to manage 64 layouts of 8 machines or 32 time 16 machines.
• You choice for 1 or 8 shooter counters.
• Skeet managment with random timer.
• Power supply by 4 batteries. R6-AAA (6000 clays for a set).
• Work on count up or count down mode.
• Security by password or manager card.

Radio modes

• AM for all JPB.receivers.
• AM CANAL for new JPB receivers.
• FM for Promatic receivers.

Cards managment

• MIFARE sans contact - JPB.
• MIFARE sans contact - Promatic.

RECEIVER FOR 1 MACHINE

Caractéristics

• The relay of machine accept 1 Ampére maximum.
• Power supply 12v up to 24v DC or AC with minimum 8v DC.
• By default no switches plugged.
• You configure the channel and machine of receiver with maried mode of long range radio sender.
• The recent modules have a LED to check how she work.

Radio modes

• AM JPB Basique.
• AM JPB Basique and AM Channel for version with LED include.

Fonction of 4 cables

• Positive = Brown or Red
• Négative = Grey or Blue
• Commun = Black
• Machine = Yellow/Green

RECEIVER FOR 8 MACHINES

The LEDs simulate machine output (not include)

Caractéristics

• The relay of machine accept 1 Ampére maximum.
• Power supply 12v DC or AC with minimum 8v DC.
• Accept a channel up to 32 * 8 machines.

Radio modes

• AM JPB only.

Options on internal switch on/off

• 1 = on Enable machines 9 up to 16 on active channel.
• 2 = on Enable skeet mode to manage lights.
• 3 = Not used actually
• 4 = on Lock the configuration. Be used after a valid launching.
